The Audible Y-717 5-inch ceiling speaker is a 2-way loudspeaker designed for public address systems and background music applications. Its recessed design fits neatly into ceilings. Therefore, it provides sound coverage while maintaining a clean, unobtrusive appearance.
The speaker features a 5-inch graphite cone woofer with a foam rubber edge. In addition, it uses a 0.75-inch silk soft dome tweeter for high-frequency reproduction. As a result, the 2-way design supports speech announcements and music playback in commercial and residential spaces.
Furthermore, the Audible Y-717 supports both 100V line and 8-ohm connections. This flexibility makes it suitable for different audio system configurations. However, please confirm the correct power rating before installation because the product packaging and rear terminal label show different ratings.
Key Features
- Model: Audible Y-717
- Speaker Type: 2-way ceiling speaker
- Woofer: 5-inch graphite cone with foam rubber edge
- Tweeter: 0.75-inch silk soft dome
- Frequency Response: 80Hz–18kHz
- Sensitivity: 89dB ±3dB
- Connection Options: 100V line / 8Ω
- Installation: Recessed ceiling mounting
- Speaker Diameter: Approximately 199mm
- Design Origin: Taiwan, as stated on the product label
Audio Performance
The Audible Y-717 combines a graphite cone woofer with a dedicated silk dome tweeter. Therefore, it supports a broad range of speech and music applications.
Its stated frequency response is 80Hz to 18kHz. Meanwhile, the listed sensitivity is 89dB ±3dB. These specifications make it a potential option for background music and public address installations where a compact ceiling speaker is required.
100V Line and 8-Ohm Connectivity
The Audible Y-717 supports 100V line and 8-ohm operation. As a result, it can be considered for distributed PA systems or compatible low-impedance audio systems.
However, the printed specifications differ between the box and the speaker’s rear label. Therefore, check the actual terminal markings and confirm the rated power before connecting the speaker to an amplifier.
Ceiling Installation

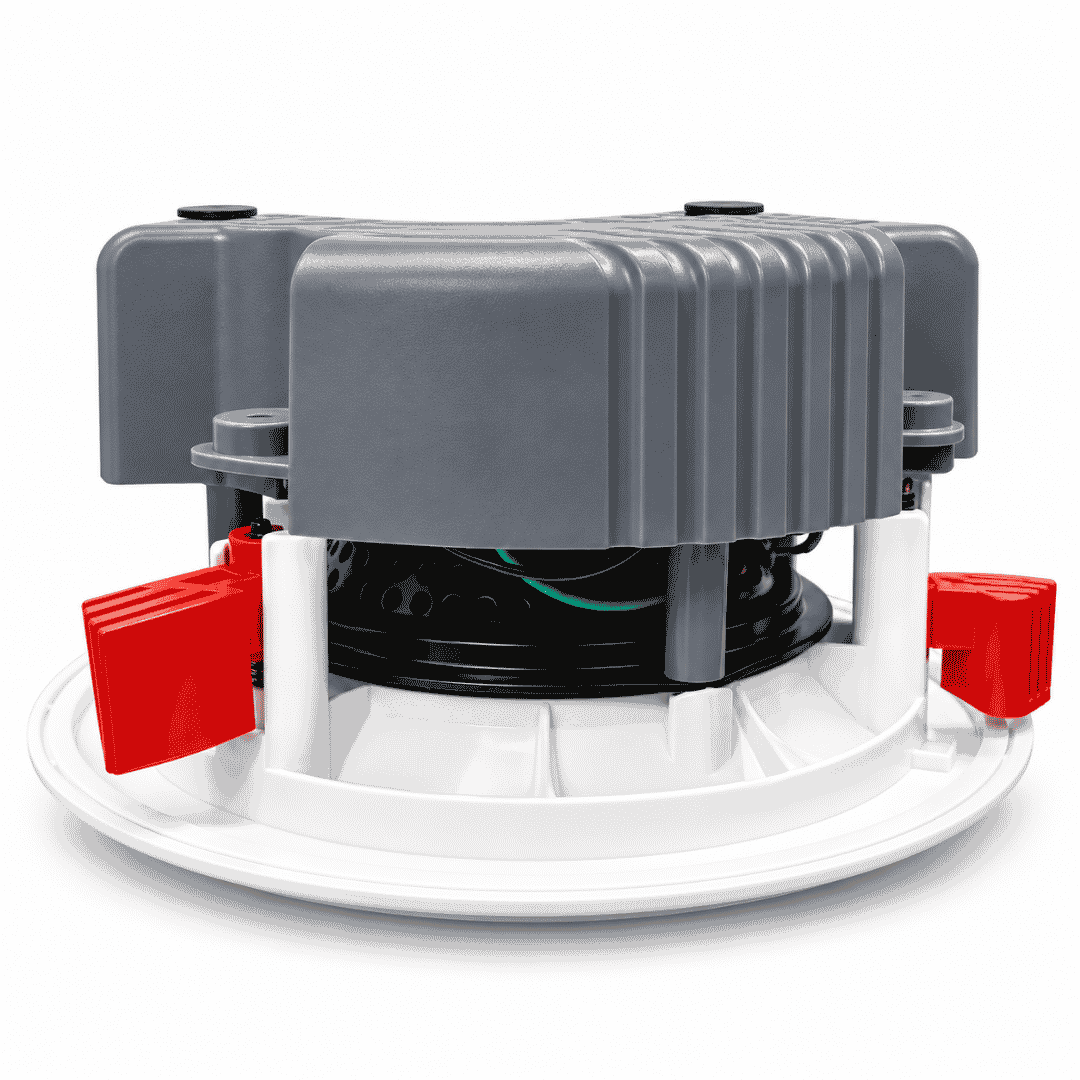

The Audible Y-717 features a round, recessed design with mounting clamps. Consequently, it can be installed into a suitable ceiling opening for a neat, flush-mounted appearance.
The packaging shows an approximately 199mm speaker diameter. However, the printed mounting measurements differ, so verify the required cut-out size against the actual speaker before cutting the ceiling.
Applications
The Audible Y-717 can be considered for the following applications:
- Public address systems
- Background music systems
- Offices and meeting rooms
- Retail shops and showrooms
- Restaurants and cafés
- Hotels and hospitality spaces
- Educational facilities
- Residential interiors
- Commercial ceiling audio installations
Furthermore, its recessed design helps keep the speaker unobtrusive in spaces where a conventional cabinet speaker may not be suitable.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Audible |
| Model | Y-717 |
| Speaker Type | 2-Way Ceiling Speaker |
| Woofer | 5-inch graphite cone |
| Woofer Surround | Foam rubber edge |
| Tweeter | 0.75-inch silk soft dome |
| Frequency Response | 80Hz–18kHz |
| Sensitivity | 89dB ±3dB |
| Input Options | 100V line / 8Ω |
| Power Rating | Requires confirmation; see note below |
| Speaker Diameter | Approximately 199mm |
| Overall Depth | Approximately 100mm, as printed on the box |
| Mounting | Recessed ceiling mount |
| Design Origin | Taiwan, as printed on the product label |
Power Rating Notice

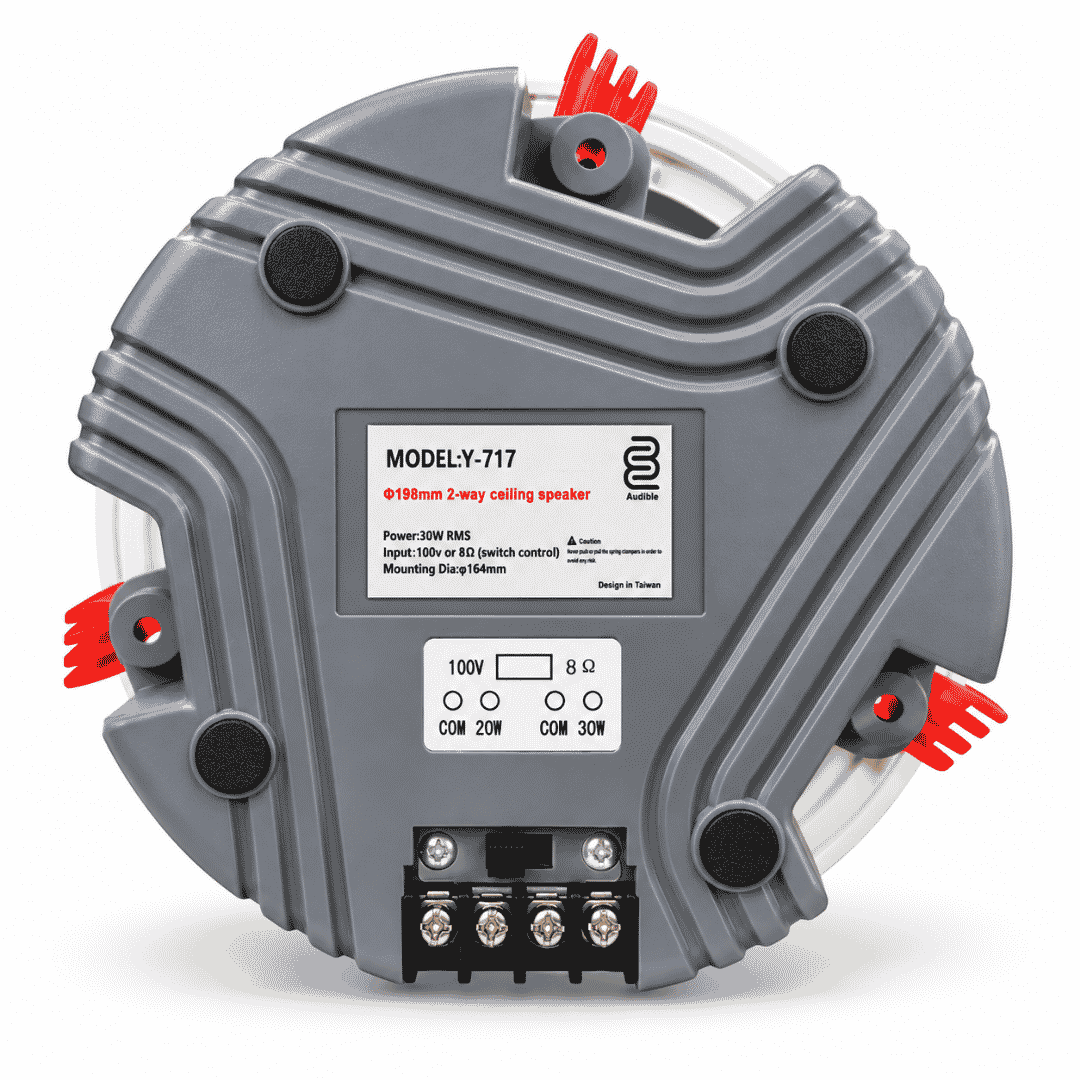

The packaging states 30W RMS on the model label, while another panel lists 100V/15W and 8Ω/20W. The rear terminal label shows 100V/20W and 8Ω/30W.
Therefore, confirm the correct ratings with the supplier or manufacturer before publishing a definitive power specification or connecting the speaker to an amplifier.
What’s Included
- 1 × Audible Y-717 ceiling speaker
- Integrated ceiling mounting clamps
- Front grille
Why Choose the Audible Y-717?
The Audible Y-717 combines a compact ceiling-mounted design with a 2-way speaker configuration. In addition, its 100V line and 8-ohm connection options offer flexibility for different audio installations.
Overall, it is a potential choice for commercial and residential ceiling audio systems requiring discreet installation and speech or music reproduction.
