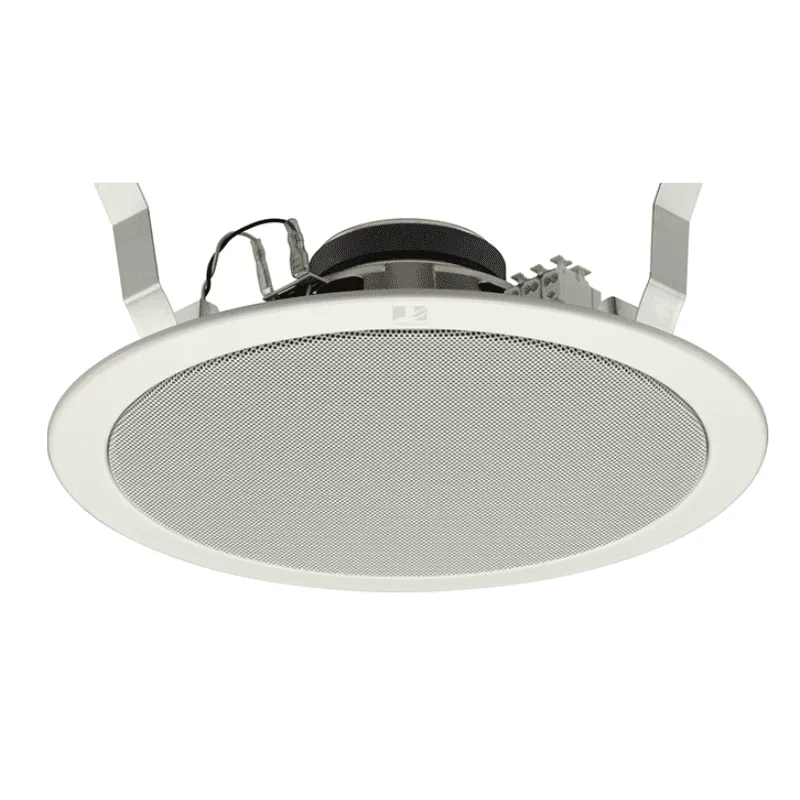

The TOA PC-2852 Ceiling Speaker is a premium-quality ceiling-mounted speaker engineered for reliable performance in commercial and public address systems. Featuring an all-metal construction, it ensures durability and long-term use in demanding environments such as offices, malls, schools, and voice evacuation systems.
This 15W speaker supports both 100V and 70V line systems, with multiple impedance taps for flexible installation. The integrated speaker and panel design simplifies installation, while the spring clamp mounting mechanism allows quick and secure ceiling fitting.
Equipped with a push-in terminal block, the PC-2852 enables easy cable connections and supports bridge wiring, making it suitable for large-scale PA installations. With excellent sound clarity and wide frequency response, it is ideal for both announcements and background music.
Key Features
- 15W ceiling speaker for PA systems
- Compatible with 100V / 70V line systems
- All-metal construction for durability
- Spring clamp mounting for easy installation
- Multiple impedance taps for flexible setup
- Push-in terminal for quick wiring & bridge connection
- Ideal for voice alarm & background music
Applications
- Mosques & religious institutions
- Offices & corporate buildings
- Schools & universities
- Shopping malls & retail outlets
- Voice alarm & evacuation systems
| Specification | Details |
| Rated Input | 15W (100V, 70V line) |
| Rated Impedance | 100V: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W) 70V: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W) |
| Sensitivity | 96 dB (1W, 1m) |
| Frequency Response | 45 Hz – 20 kHz |
| Speaker Component | 20 cm (8”) coaxial cone-type |
| Mounting Hole | Ø250 ±3 mm |
| Ceiling Thickness | 5 – 25 mm |
| Dimensions | Ø280 × 92 mm |
| Finish | Steel plate, white (RAL 9016 equivalent) |
| Mounting Method | Spring clamp |
| Weight | 1.6 kg |
| Connection | Push-in connector |
| Applicable Cable | 600V vinyl-insulated cable, solid or stranded copper |
