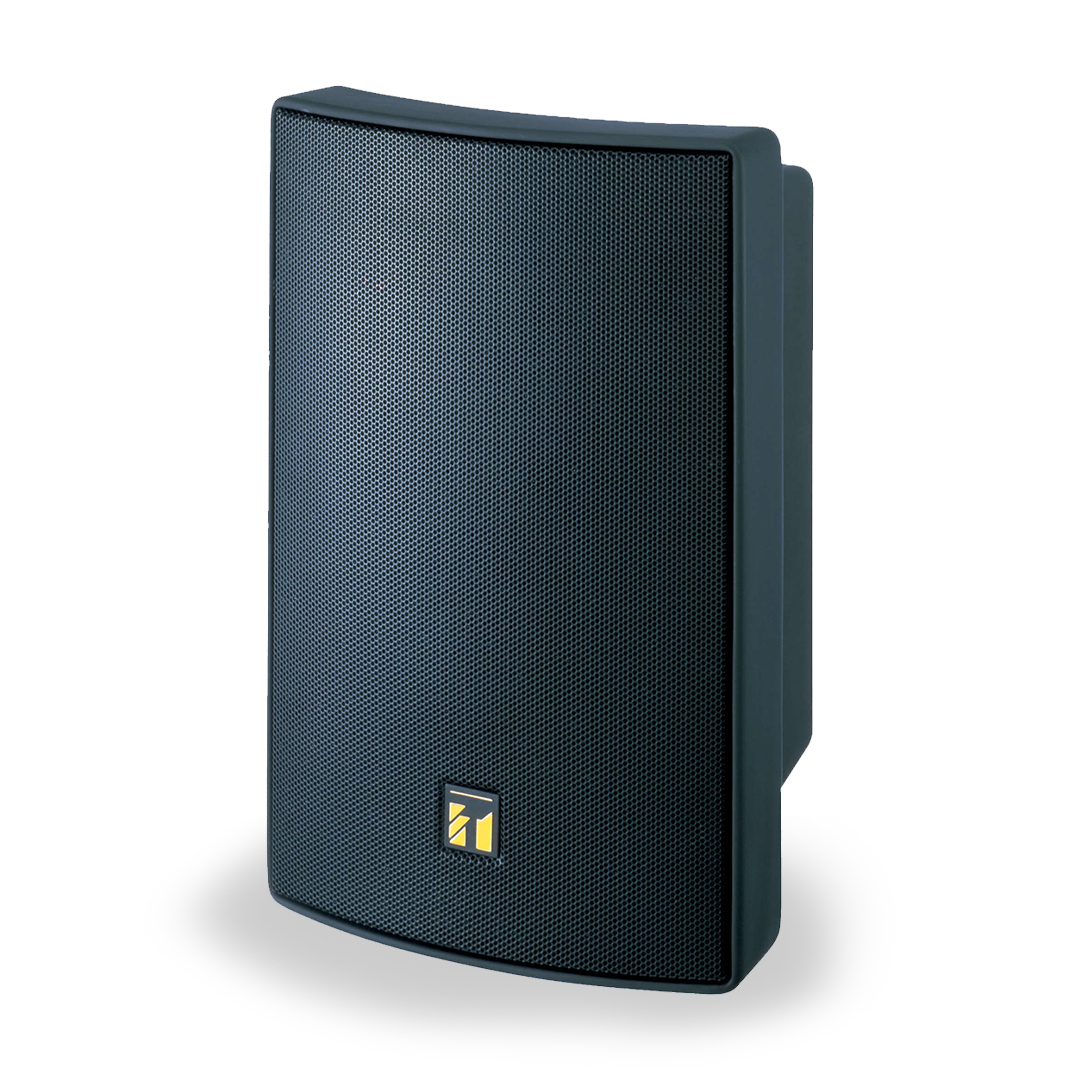

The BS-1030B 2-Way Bass Reflex Speaker is a compact yet powerful solution designed for both announcements and music playback. With its wide frequency response and robust sound projection, it is well-suited for public address systems, background music, and general sound reinforcement in a variety of environments.
One of the key advantages of the BS-1030B is its versatility in installation. The speaker supports both high-impedance (100V line) and low-impedance (8Ω) connections, easily selectable via a rotary switch. This feature makes it adaptable for use in small standalone systems as well as large distributed audio networks. As a result, installers and system designers benefit from greater flexibility and simplified setup.
Built with splash-proof construction (IPX4 compliant), the BS-1030B is designed for indoor and semi-outdoor use. It can be safely installed under eaves or covered areas where it is not directly exposed to heavy rain, ensuring long-term durability. This makes it an excellent choice for schools, offices, commercial facilities, houses of worship, and outdoor walkways.
The 2-way bass reflex design delivers clear highs and strong low frequencies, ensuring both speech intelligibility and rich music reproduction. Furthermore, its compact enclosure and sleek appearance allow it to blend seamlessly into any setting without compromising audio performance.
Key Features of the BS-1030B Speaker
-
2-way bass reflex design for balanced sound reproduction
-
Cost-effective high-power PA box speaker
-
Selectable impedance: 8Ω (low) or 100V (high) via rotary switch
-
Splash-proof IPX4 construction for semi-outdoor installations
-
Flexible mounting options for various environments
In conclusion, the BS-1030B Speaker combines clarity, durability, and flexibility, making it a reliable solution for both speech and music applications in professional sound systems.
Specifications:
| Model | BS-1030B (Black), BS-1030W (White) | |
| Enclosure Type | 2-way bass-reflex | |
| Rated Input Power | 30W | |
| Rated Impedance | 8Ω | |
| Transformer Taps (70V) | 330Ω (15W), 500Ω (10W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W) | |
| Transformer Taps (100V) | 170Ω (30W), 250Ω (20W), 330Ω (15W), 500Ω (10W), 1kΩ (5W) | |
| Sound Pressure Level | 90 dB (1W, 1m) | |
| Frequency Response | 80 Hz – 20 kHz | |
| Speaker Components | 12 cm dynamic woofer + 2.5 cm dome tweeter | |
| Speaker Cord | 2-core cabtyre cord, 6 mm diameter | |
| Operating Temperature | -10°C to +50°C | |
| Water Protection | IPX4 (vertical or horizontal installation allowed) | |
| Material – Case | ABS resin (Black – BS-1030B / White – BS-1030W), painted | |
| Material – Grille | Pre-coated steel plate, painted (Black or White) | |
| Material – Bracket | Pre-coated steel plate, painted (Black or White) | |
| Dimensions (W × H × D) | 196 × 290 × 150 mm | |
| Weight | 2.5 kg (unit only) |
