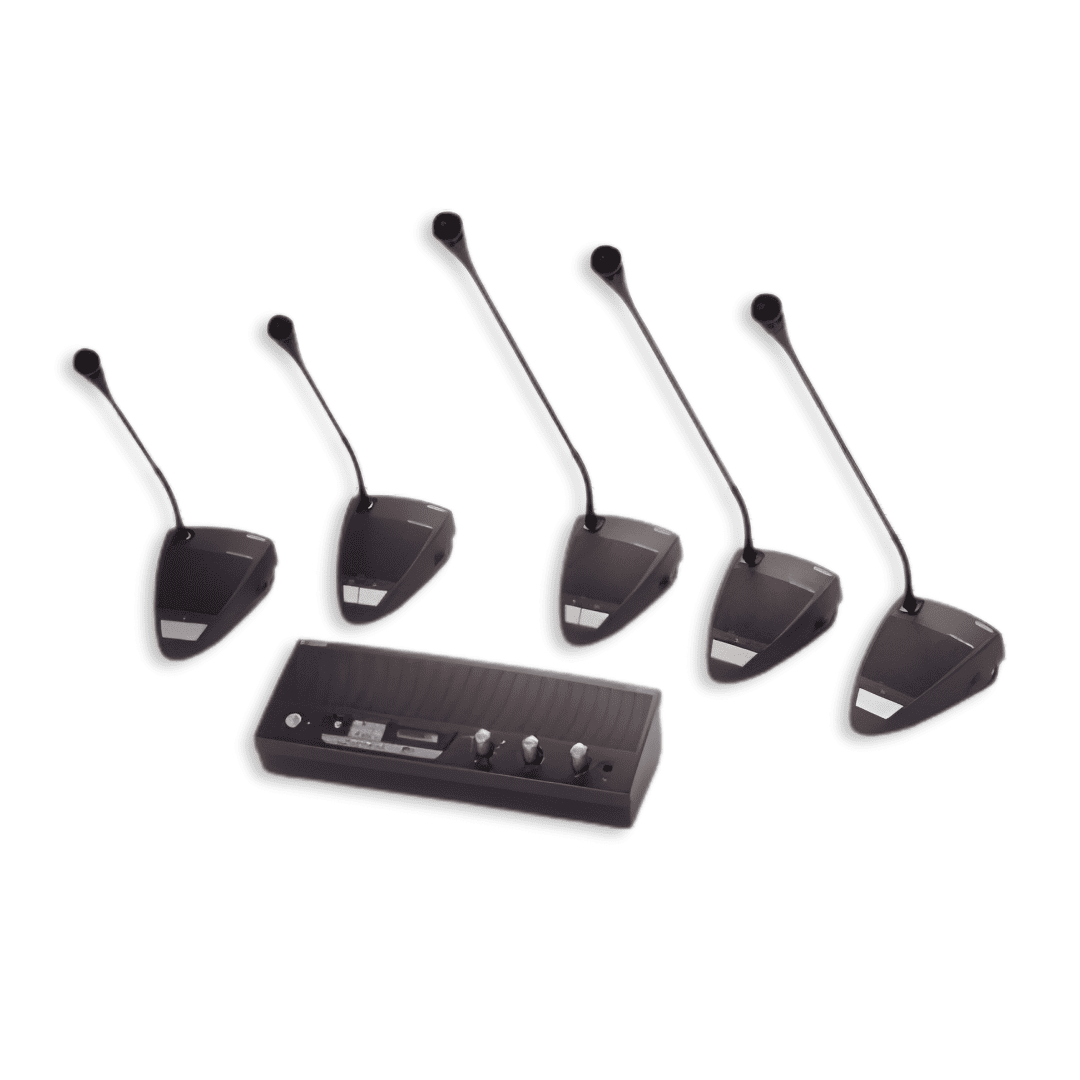

Elevate your conference and meeting setups with the Philips CCS 800 Discussion System – Delegate Microphone Unit. Designed for modern boardrooms and training venues, this system delivers clear, reliable speech intelligibility while offering intuitive control for delegates and chairpersons.

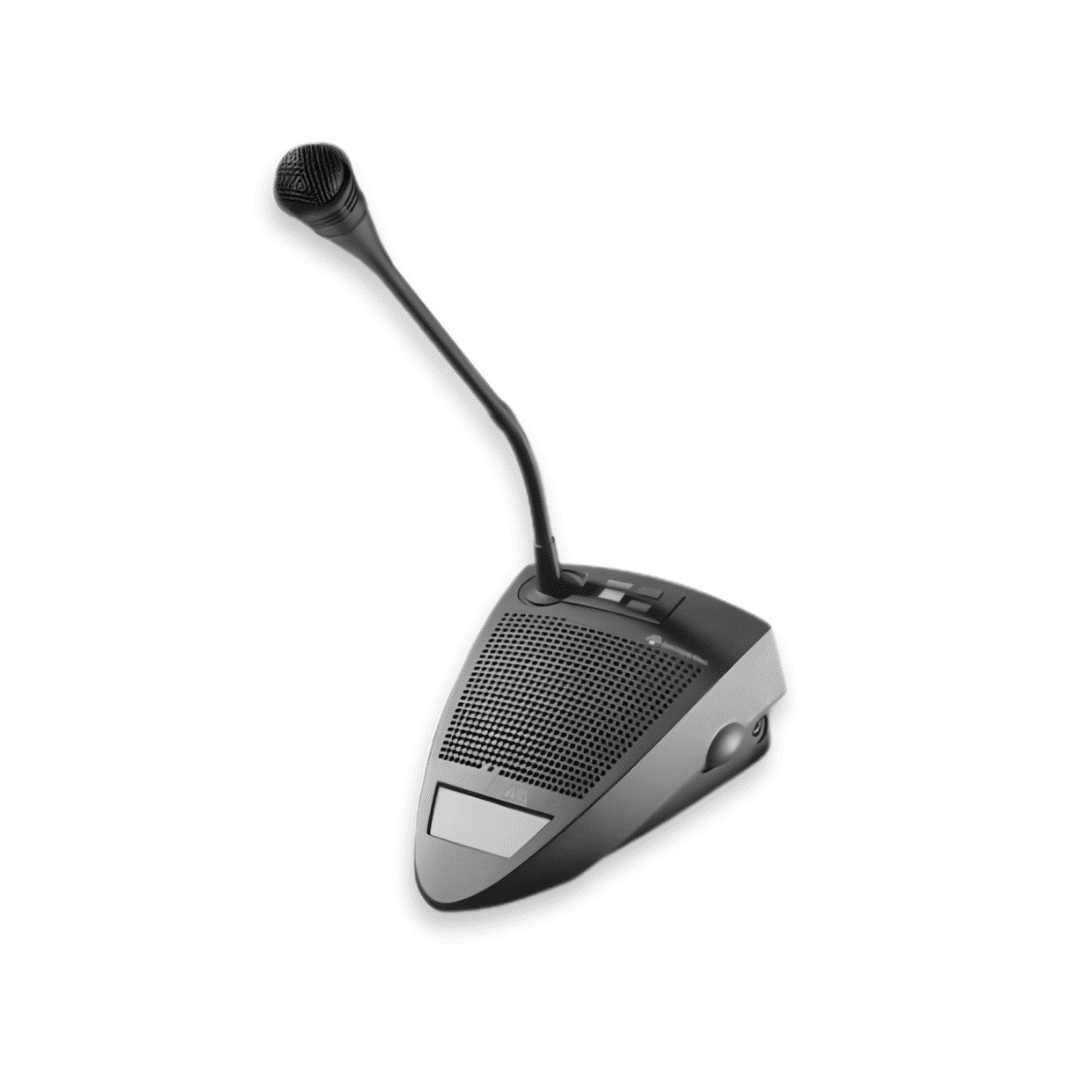

The system features a delegate unit equipped with a gooseneck condenser microphone, a built-in loudspeaker (muted automatically when mic is active), and dual headphone sockets for flexible monitoring. A red LED ring clearly indicates when a microphone is active. The volume control allows each delegate to adjust monitoring levels for optimal clarity. The modular design ensures the system suits both fixed installations and portable setups.
With support for multiple operating modes—open, override, chairman-only—this solution adapts to different meeting styles, ensuring structured discussion or open participation as required. The central control and power unit handles power and audio signalling for up to 150 units over standard cabling (up to 100 m loop). The system interfaces to PA systems, recording devices and telephone lines for remote participation.
Whether you’re outfitting a hotel conference hall, corporate boardroom or educational facility, the CCS 800 system ensures professional-grade audio performance, simplified control and flexible installation. Backed by Philips engineering, you get a dependable platform that enhances collaboration, drives meeting efficiency and maintains a clean aesthetics in any venue.
Specifications:
| Specification | Details |
| Microphone type | Condenser gooseneck with red illuminated ring indicator |
| Headphone connectivity | Two 3.5 mm stereo headphone sockets (wired mono) |
| Built-in loudspeaker | Yes; automatically muted when mic is active or headphone inserted |
| Operating modes | Open (with/without auto-switch-off), Override, Chairman-only, Test mode |
| Maximum system length | Up to 100 m (328 ft) trunk cable length |
| Power supply / mains input | 100-240 V AC (CPSU), 24 V DC configured powering units |
| Delegate unit dimensions | 63 × 124 × 172 mm (HxWxD) approx; microphone stem ~313 mm standard |
| Unit weight | Approx. 0.9 kg (2.0 lb) |
| System capacity | Up to 150 units |
