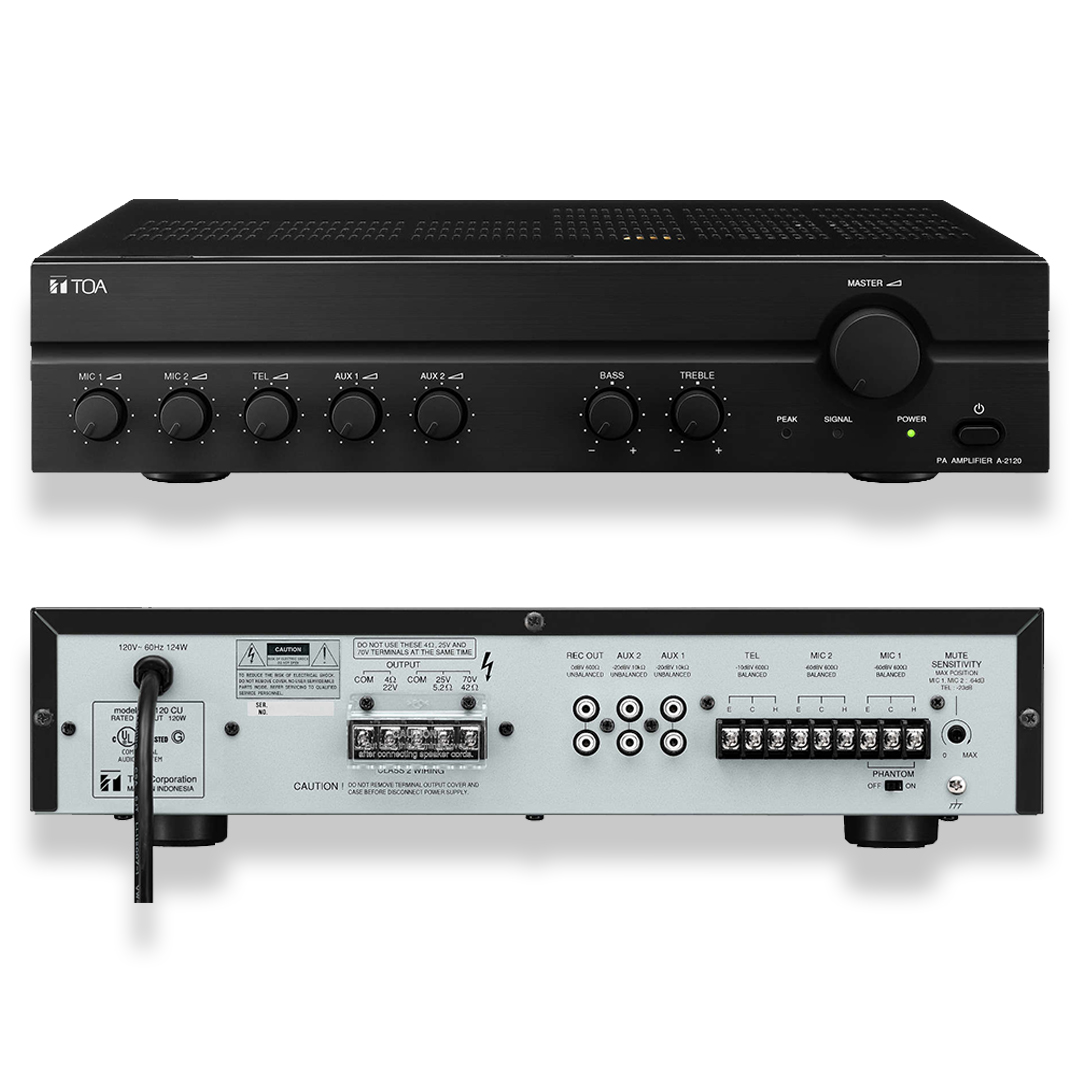

The Multi-Purpose Mixer Power Amplifier is a cost-effective and high-performance solution designed for a wide range of public address (PA) applications. Engineered with maximum versatility in mind, this unit is ideal for schools, offices, places of worship, and medium-sized environments where clarity, reliability, and simple operation are essential.
With multiple power output options, the amplifier ensures flexibility for different setups. In addition, its paging function and dual-zone coverage provide tailored sound distribution, making it suitable for both announcements and background music. Therefore, it is a reliable choice for facilities that require effective communication and sound reinforcement.
The user-friendly front panel allows easy operation, even for non-technical users. Furthermore, the amplifier includes two electronically balanced microphone inputs for clear speech delivery and two AUX inputs for connecting external audio sources such as players or media devices. A recording output is also provided for added functionality.
To enhance sound quality, the unit supports phantom power on MIC 1, ensuring compatibility with condenser microphones. Moreover, the wide tone-control adjustment range of ±10 dB for both bass and treble allows fine-tuning of audio output. As a result, users can enjoy crisp highs and deep lows tailored to their environment.
For flexible speaker connections, the amplifier provides 70V / 25V line outputs or 4Ω speaker outputs, ensuring compatibility with various speaker systems. Built with durability and efficiency, this mixer power amplifier is designed for long-term use while maintaining consistent performance.
Key Features
-
Cost-effective and durable design
-
User-friendly front panel for easy control
-
2 mic inputs + 2 AUX inputs + recording output
-
Phantom power at MIC 1
-
Wide tone control range of ±10 dB
-
70V / 25V line or 4Ω outputs for flexible setups
In conclusion, this Multi-Purpose Mixer Power Amplifier is a practical, efficient, and versatile solution for any PA requirement.
Specifications:
| Model | A-2240 | |
| Power Source | 120 V AC | |
| Rated Output | 240 W | |
| Power Consumption | 238 W (EN60065), 520 W (at rated output, AC operation) | |
| Frequency Response | 50 Hz – 20,000 Hz (±3 dB) | |
|
Total Harmonic Distortion
|
≤ 1% at 1 kHz, 1/3 rated power | |
| Signal-to-Noise Ratio | ≥ 60 dB | |
| Inputs | – MIC 1, 2: -60 dB, 600 Ω, balanced, M3.5 screw terminal | |
| – TEL: -10 dB, 10 kΩ, balanced, M3.5 screw terminal | ||
| – AUX 1, 2: -20 dB, 10 kΩ, unbalanced, RCA jack | ||

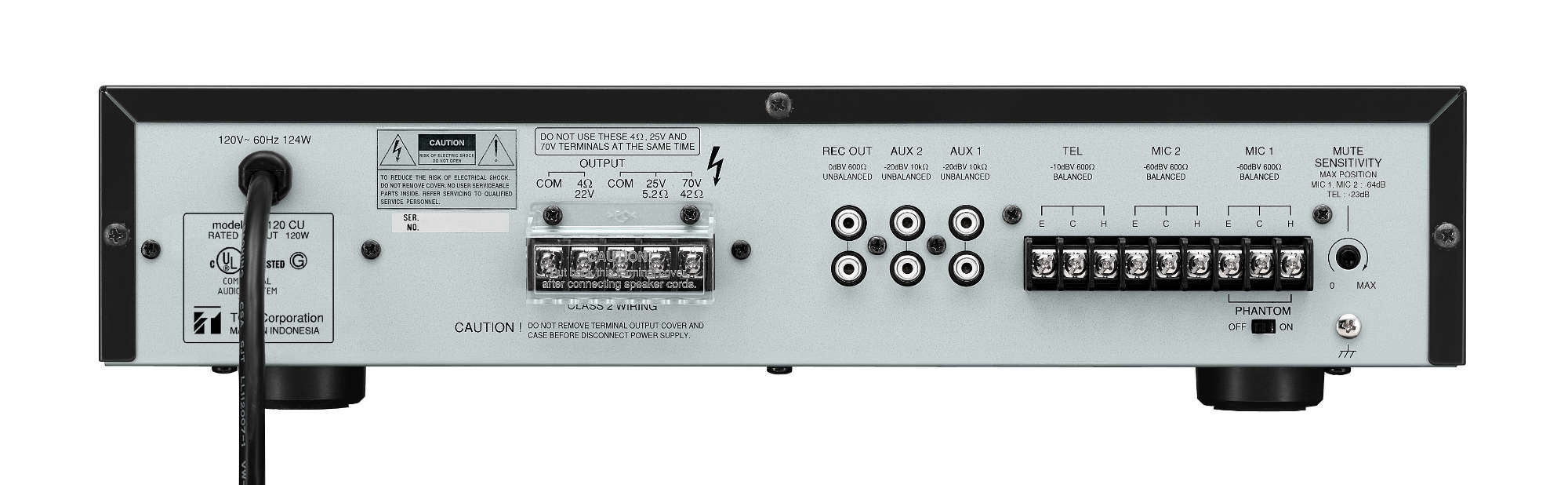

| Outputs | – Speaker Out: M3.5 screw terminal (floating balanced) | |
| – High Impedance: 21 Ω (70V), 2.6 Ω (25V) | ||
| – Low Impedance: 4 Ω (31V) | ||
| – REC Out: 0 dB, 600 Ω, unbalanced, RCA jack | ||
| Phantom Power | DC +21V (MIC 1 only) | |
| Tone Control | Bass: ±10 dB at 100 Hz | |
| Treble: ±10 dB at 10 kHz | ||
| Muting Function | MIC 1, MIC 2, TEL priority (attenuates AUX1/2 by 30 dB; sensitivity adjustable) | |
| Finish – Panel | ABS resin, black | |
| Finish – Case | Steel plate, black | |
| Dimensions | 420 × 100.9 × 360.3 mm (16.54″ × 3.97″ × 14.19″) | |
| Weight | 15.5 kg (34.17 lb) |
