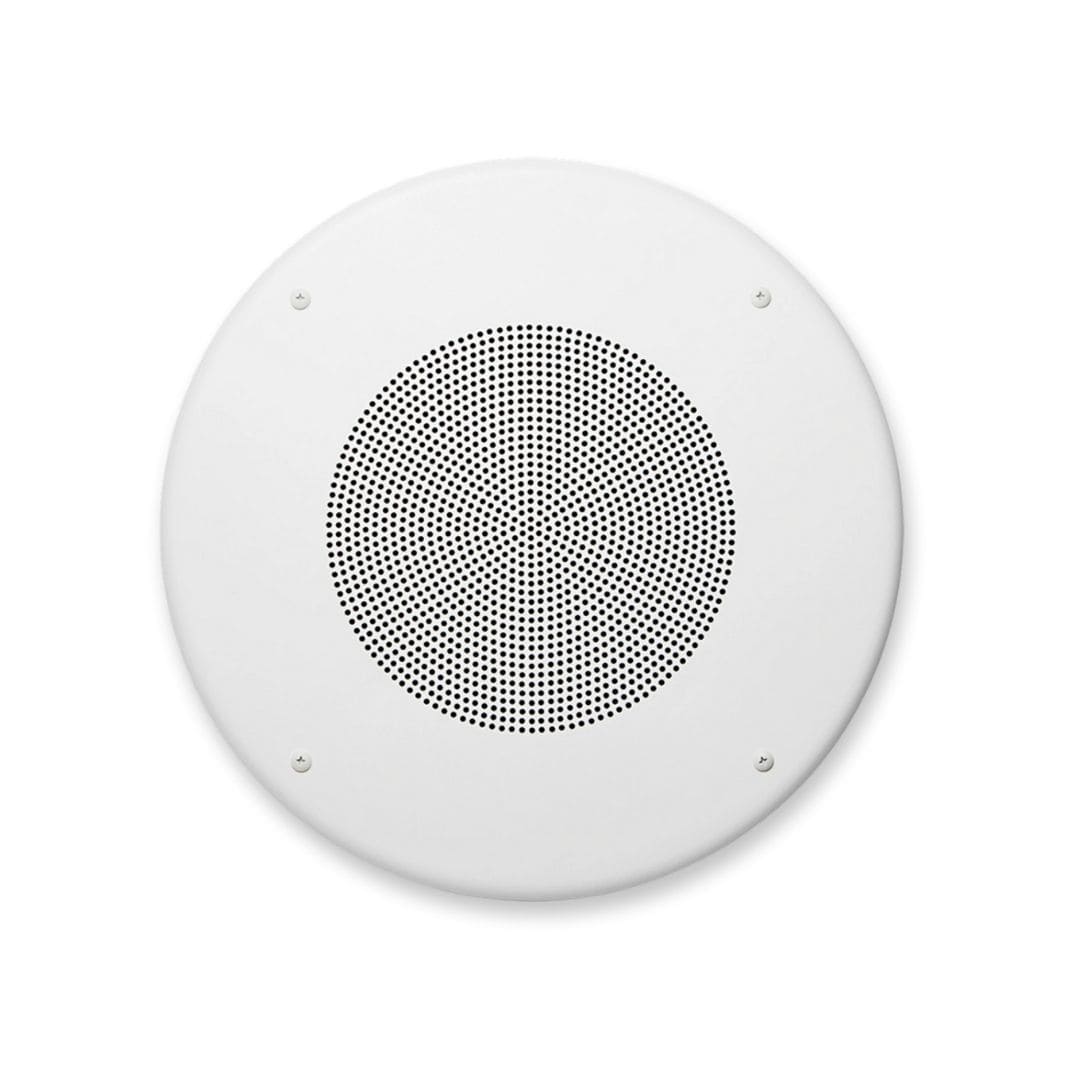

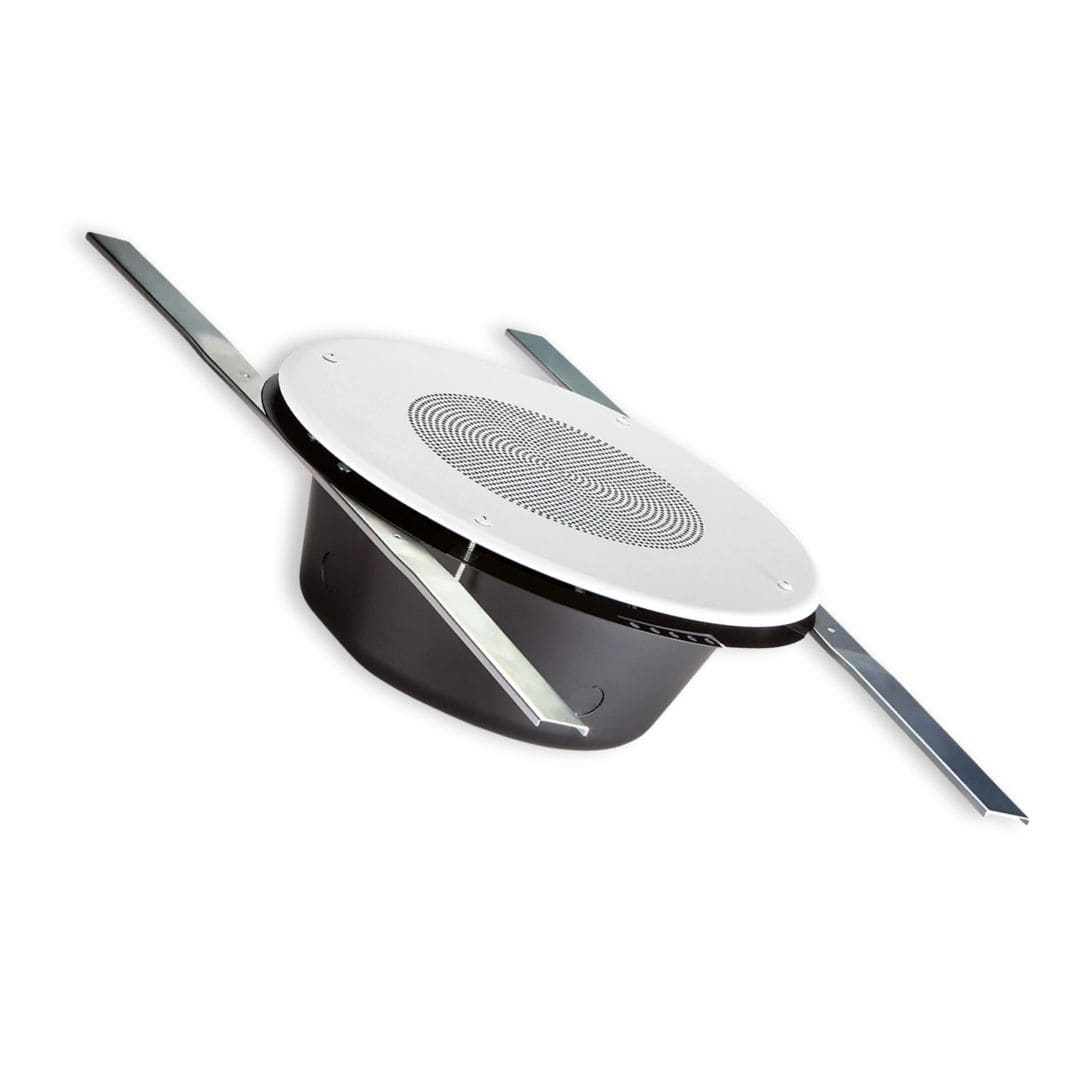

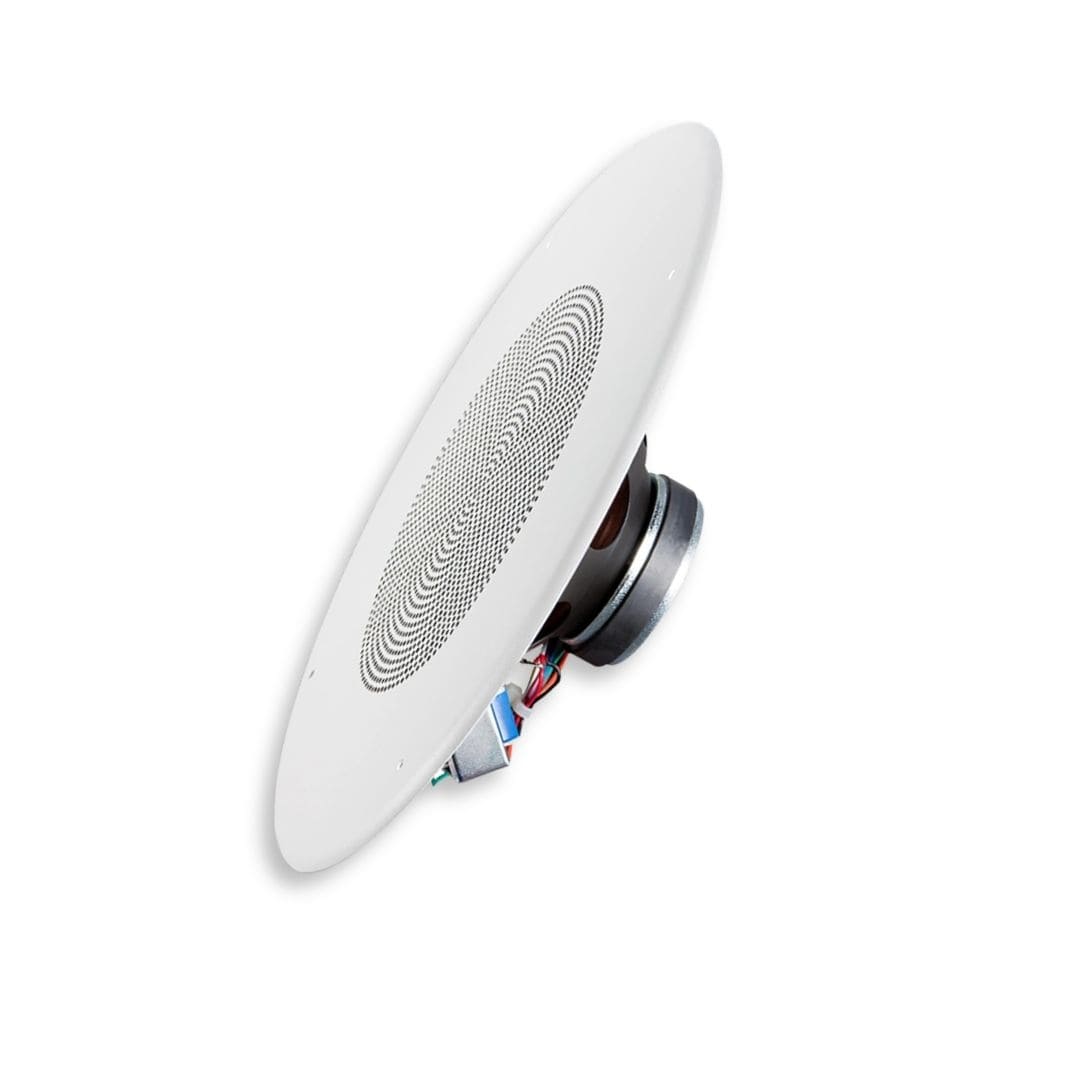

The JBL CSS 8018 Ceiling Speaker delivers exceptional clarity and high output for commercial sound systems. Built with JBL’s legendary audio engineering, this speaker is ideal for paging, background music, and public address applications in retail stores, offices, restaurants, and schools.
Featuring a 200 mm (8-inch) dual-cone driver, the CSS 8018 provides a smooth frequency response and extended bass performance. Its 97 dB sensitivity ensures maximum sound levels even with minimal amplifier power, making it highly efficient and cost-effective. The built-in triple-voltage transformer (100V, 70V, 25V) adds installation flexibility, while the 10-watt multi-tap design allows easy adaptation to various power systems.

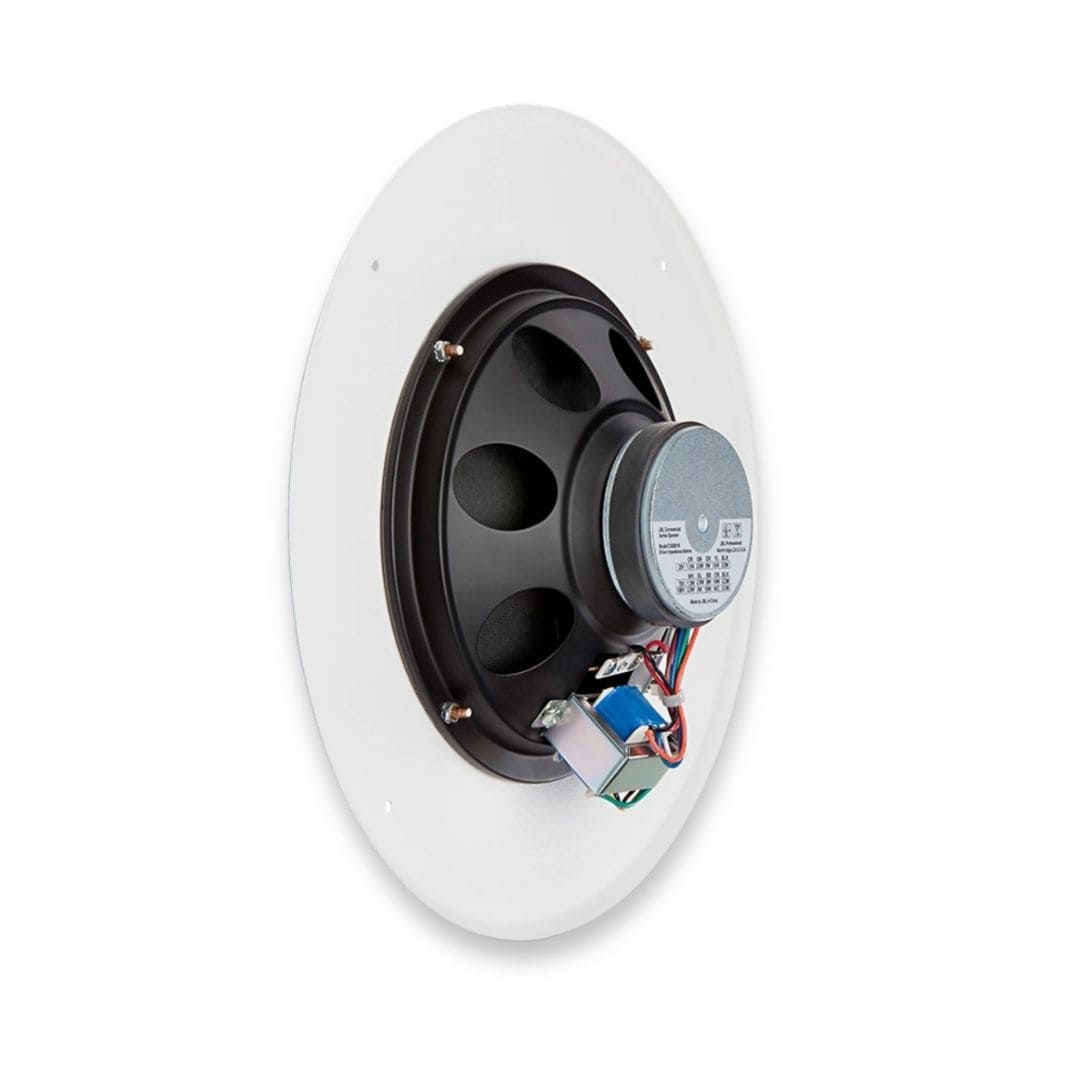

The driver’s 25 mm (1-inch) voice coil with a Kapton coil former ensures superior heat dissipation and long-term reliability. A pre-attached grille and transformer make installation quick and convenient. The painted steel grille with zinc-plated finish provides durability and a professional appearance, perfectly blending into any ceiling.
Designed for dependable performance, the JBL CSS 8018 is an ideal solution for projects requiring wide coverage, clean sound, and lasting reliability. Whether used in commercial environments or background music systems, it consistently delivers JBL-quality sound in every installation.
Model: CSS8018
Specifications:
| Type | Ceiling Speaker |
| Driver Size | 200 mm (8 in) Dual-Cone |
| Frequency Range | 50 Hz – 17 kHz |
| Power Handling | 20W Continuous |
| Sensitivity | 97 dB (1W/1m) |
| Impedance | 8 Ohms |
| Transformer Taps | 10W, 5W, 2.5W, 1.3W (100V/70V/25V) |
| Coverage Angle | 110° (2 kHz) |
| Voice Coil | 25 mm (1 in) Kapton Former |
| Mounting Cutout | 216 mm (8.5 in) |
| Grille Diameter | 327 mm (12.9 in) |
| Net Weight | 1.58 kg (3.5 lb) |
| Finish | Painted, Zinc-Plated Steel |
| Manufacturer | JBL Professional |
