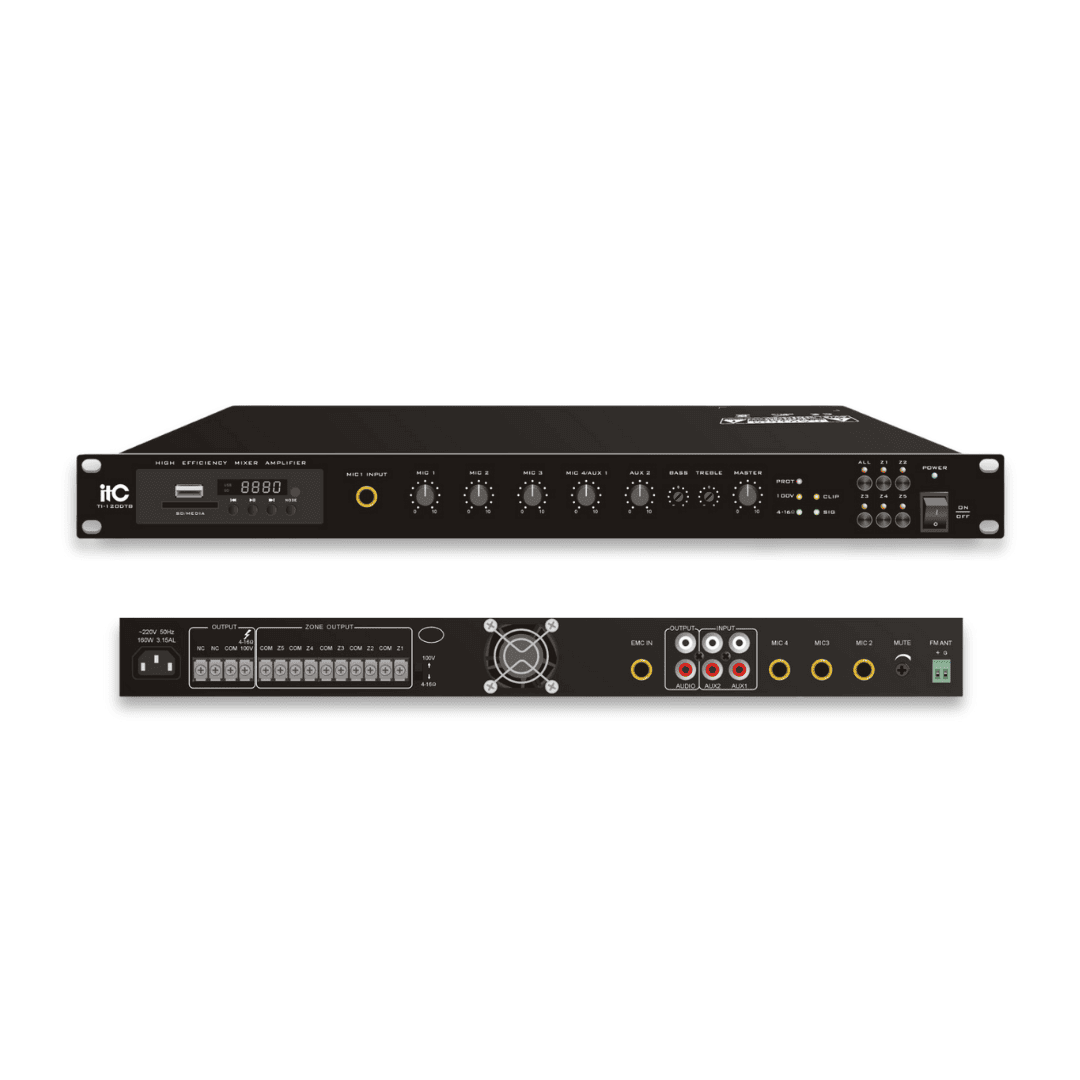

The ITC Amplifiers 60w 120w 240w 350w 500w bring powerful performance and flexibility to every professional sound system. Offered in five models—from 60 Watts to 500 Watts—these mixer amplifiers handle background music, paging, and public-address installations with precision.
Each ITC Amplifier combines modern design with reliable functionality. It supports MP3, tuner, and Bluetooth playback, while USB and TF card inputs make media access effortless. Moreover, the bright LCD display shows every track clearly, and the remote control simplifies operation during live use.
You’ll find four microphone inputs, two AUX inputs, and one EMC input, all with individual volume controls and tone adjustment. Because of the built-in priority function (EMC > MIC1 > MIC2–4 > AUX1–2), critical announcements always reach the audience first.
With Class D power amplification, these units run efficiently and stay cool even during long sessions. In addition, each model features short-circuit, overload, and heat protection, along with a 24 V DC backup option that keeps the system active during power interruptions.
Their compact 1U rack design and sturdy metal housing make installation quick and secure. Whether you’re equipping a mosque, restaurant, school, shopping mall, or office, the DTBV series delivers clear and consistent sound every time.
For dependable performance and long-term value, choose Light & Sound Pakistan—your trusted source for ITC Mixer Amplifiers and professional audio equipment.
Specifications:
| Model | T-60DTBV | T-120DTBV | T-240DTBV | T-350DTBV | T-500DTBV |
| RMS Power | 60W | 120W | 240W | 350W | 500W |
| Power Consumption | 120W | 180W | 300W | 500W | 650W |
| Weight | 3.5 Kg | 3.7Kg | 3.8Kg | 4.0Kg | 4.1Kg |
| Output | 4-16Ω, 100V |
| Input Sensitivity & Impedance | MIC1, 2, 3, 4 input: 5mV/600Ω, unbalanced 6.3 connector |
| AUX1, 2 input: 350mV/10KΩ, unbalanced RCA connector | |
| EMC input: 775mV/10KΩ, unbalanced 6.3 connector | |
| Output Sensitivity & Source Impedance | MIX OUT: 1000mV/470Ω, unbalanced RCA connector |
| Tone | Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz | |
| Frequency Response | 50Hz~16KHz(+1dB,-3dB) |
| SNR | MIC1, 2, 3: 66dB; AUX1, 2: 80dB |
| THD | Less than 0.5%( at 1KHz, 1/3 rated power) |
| Mute Control | MIC 1 priority over MIC2-4, AUX1-2 audio input |
| EMC has highest priority | |
| Channel Crosstalk Attenuation | ≥50dB |
| Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts when amplifier turned on, infinitely variable speed |
| Protection | Over-heat, overload, short circuit |
| Power Supply | AC ~220-240V /50Hz |
| Dimension | 484x300x44mm |
