The Battery-Supplied Condenser Microphone is a high-performance, portable solution for clear and precise audio capture. With a cardioid polar pattern, this microphone is ideal for various audio recording applications, whether in professional settings or home studios. Its robust design and wide frequency response of 80-12,500 Hz ensure that every sound, from deep bass to crisp treble, is captured with remarkable clarity.
The microphone’s high signal-to-noise ratio (S/N ratio: more than 58dB) minimizes unwanted background noise, allowing for crystal-clear recordings. It operates on a 1.5V battery, offering an efficient power solution with a low current consumption of 0.5mA. The condenser mic has an impedance of 680Ω, providing superior compatibility with various sound systems and equipment.
This microphone’s versatility extends to its wide operation voltage range (1.0V – 10V), making it adaptable to a range of devices, from mixers to audio interfaces. Whether you’re recording vocals, instruments, or capturing dialogue for podcasts and broadcasts, this condenser mic delivers outstanding performance, making it a must-have tool for anyone seeking high-quality audio.
Available in multiple finishes—black (ECM-112B), white (ECM-112W), and gold (ECM-112G)—this mic combines style and function for all your sound recording needs.

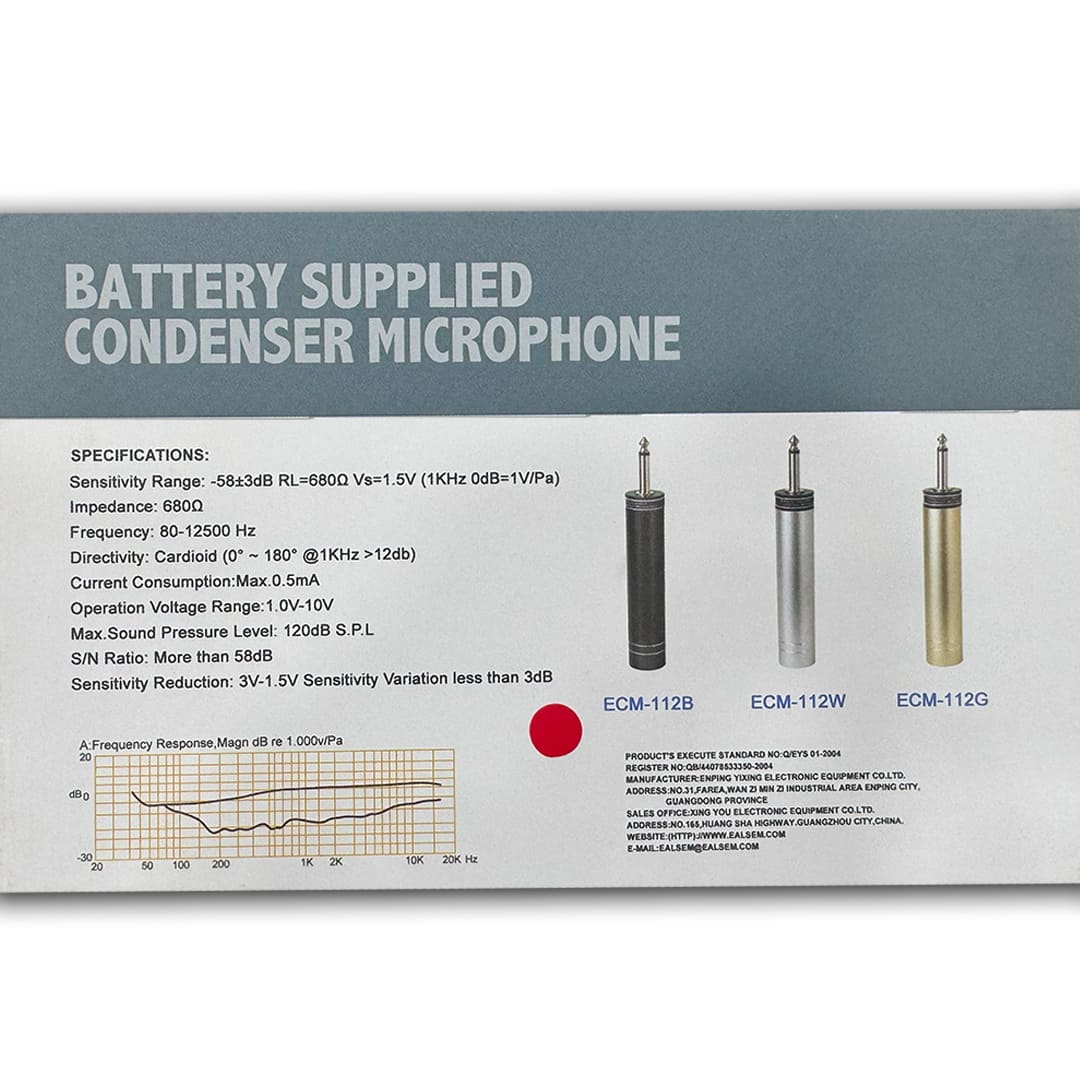

Specifications:
| Sensitivity Range | -58±3dB RL=680Ω Vs=1.5V (1kHz 0dB=1V/Pa) |
| Impedance | 680Ω |
| Frequency | 80-12,500 Hz |
| Directivity | Cardioid (0° ~ 180° at 1kHz >12dB) |
| Current Consumption | Max. 0.5mA |
| Operation Voltage Range | 1.0V-10V |
| Max Sound Pressure Level | 120dB S.P.L. |
| S/N Ratio | More than 58dB |
| Sensitivity Reduction | 3V-1.5V Sensitivity Variation < 3dB |
| Available Models | ECM-112B (Black), ECM-112W (White), ECM-112G (Gold) |
