The 260W / 380W Two Zone PA Mixing Amplifier – Audible PA-260 / PA-380 is a reliable and high-performance audio solution designed for professional public address systems.
With dual-zone output capability, this amplifier allows you to control audio across two different areas independently or simultaneously. It features multiple microphone inputs, AUX connectivity, and built-in USB/SD media playback, making it suitable for both announcements and background music.
The system includes a priority mute function, ensuring that microphone input overrides other audio sources—perfect for paging and emergency use. Its robust metal construction, intuitive front panel controls, and flexible rear connectivity make it ideal for long-term commercial installations.
Key Features of Two Zone PA Mixing Amplifier
- 260W & 380W High Power Output Options
- Dual Zone Audio Control (Zone 1 & Zone 2)
- Built-in USB / SD / MP3 Player
- Multiple MIC Inputs with Independent Volume Control
- AUX & Line Inputs for External Devices
- Priority Mute Function for Announcements
- Bass & Treble Tone Control
- LED Level Meter for Signal Monitoring
- 100V Line & Low Impedance Speaker Output
- Durable Rack-Mountable Design

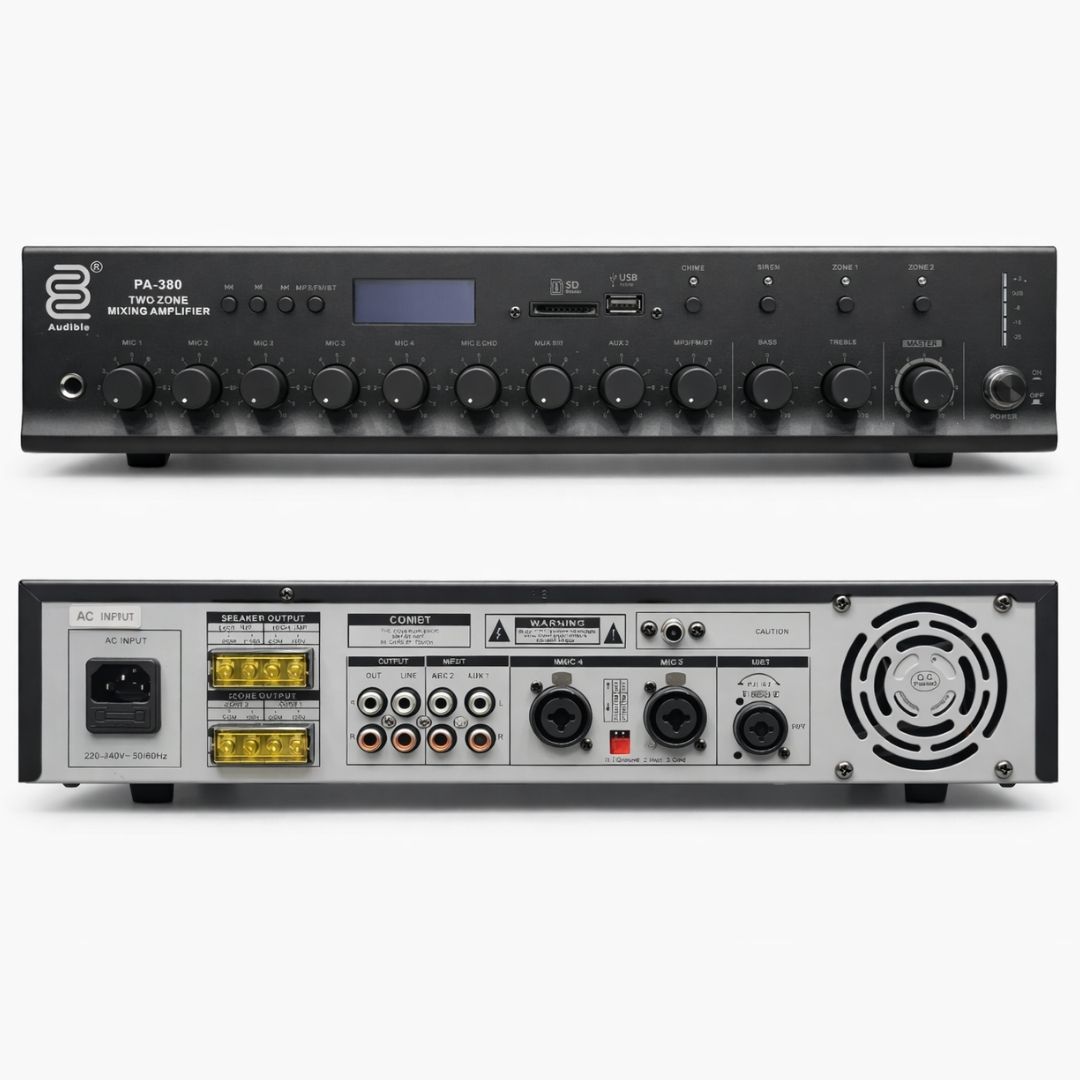

Front Panel Functions
- MP3/FM/BT Player Control Keys
- LCD Display
- SD Card Port
- USB Port
- CHIME Switch
- SIREN Switch
- Zone 1 Selector Switch
- Zone 2 Selector Switch
- LED Level Meter
- MIC1 Volume Control
- MIC2 Volume Control
- MIC3 Volume Control
- MIC4 Volume Control
- MIC Echo Control
- AUX1 Volume Control
- AUX2 Volume Control
- MP3/FM/BT Volume Control
- Bass Control
- Treble Control
- Master Volume Control
- Power Indicator
- Signal Indicator / Level Indicator
- Power Switch
Rear Panel Connectivity
- AC Power
- 4–16Ω Output Terminal
- Zone 1/2 Output Terminal
- REC / LINE Output Terminal
- AUX1 / AUX2 Input Terminal
- MIC4 Input
- 48V Phantom Power Switch
- MIC3 Input
- MIC Priority Switch
- FM ANT
Applications
- Mosques & Religious Installations
- Schools & Educational Institutes
- Offices & Commercial Buildings
- Retail Stores & Supermarkets
- Factories & Warehouses
- Paging & Emergency Systems
Two Zone PA Mixing Amplifier Specifications
| Specification | PA-260 | PA-380 |
| Output Power | 260W | 380W |
| THD | <1% | <1% |
| Frequency Response | 100Hz – 15kHz (±3dB) | Same |
| S/N Ratio | >50dB | Same |
| Line Input Sensitivity | ≤350mV | Same |
| MIC Input Sensitivity | ≤15mV | Same |
| Audio Format | MP3 / WMA | Same |
| Power Supply | AC 220–240V, 50/60Hz | Same |
| Dimensions | 430 × 88 × 330 mm | Same |
| Weight | 8.6 kg | 11.8 kg |
