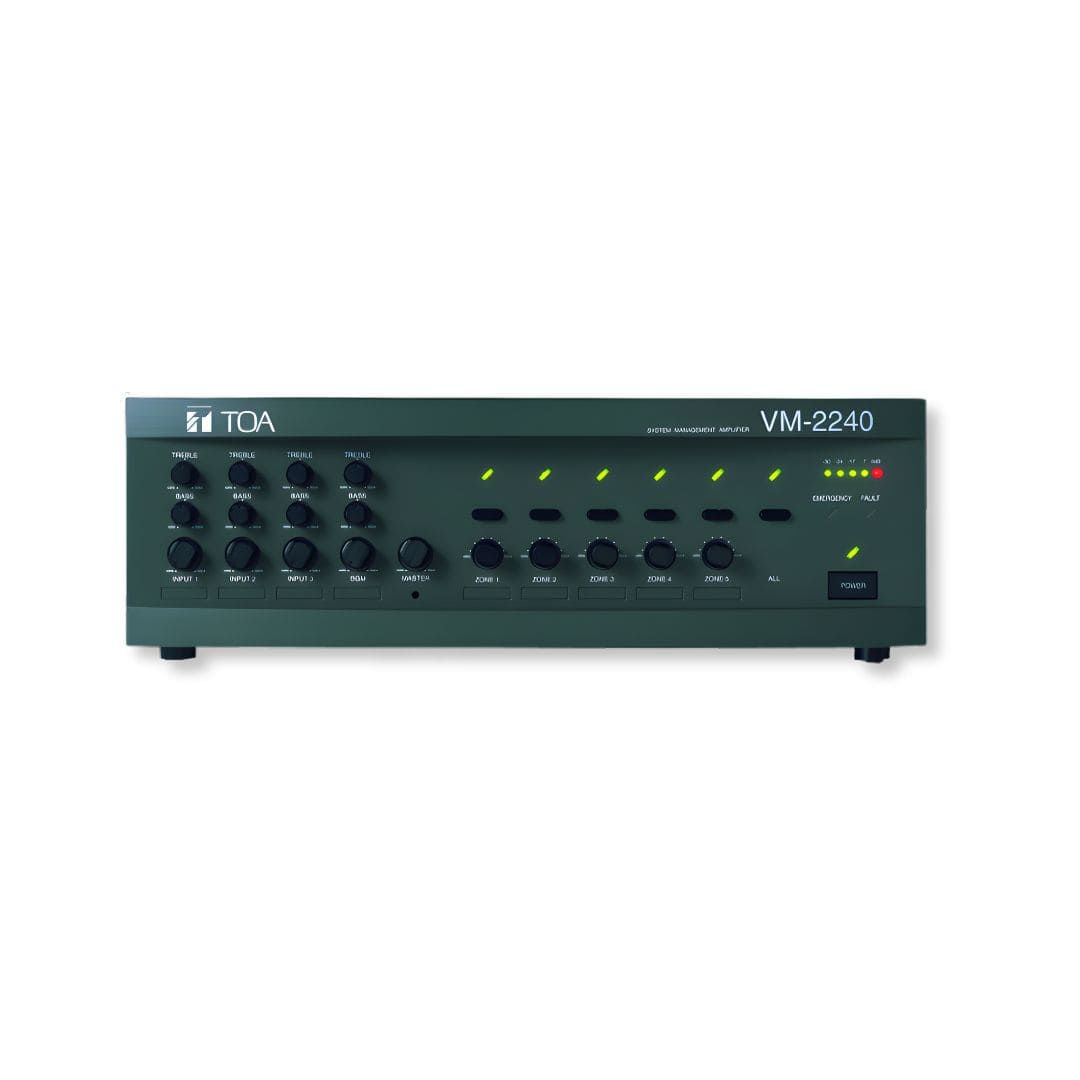

The TOA Amplifier VM-2240 offers a powerful and flexible solution for multi-zone public address systems. It delivers 240 watts of clean output, which allows clear audio distribution across large commercial, educational, and industrial facilities. Because it supports five independent speaker zones, you can route announcements or background music exactly where they are needed. You can also expand the system to cover up to 45 zones, making it suitable for both small setups and large installations.
This TOA Amplifier includes four versatile audio inputs, giving you options for paging microphones, background music sources, and line-level devices. Its routing controls allow quick assignment of each input to specific zones, so communication remains organized and efficient. Additionally, the built-in volume attenuators for every zone give you precise control over sound levels, which helps maintain clarity in different acoustic environments.
The VM-2240 also supports emergency broadcast features, ensuring important messages reach all selected areas instantly. Furthermore, you can integrate optional accessories, such as remote microphones or system surveillance modules, to increase functionality and monitoring capabilities. These options help create a reliable system that adapts to evolving communication needs.
Installation is straightforward because the unit fits standard rack-mount systems and offers a clean, accessible front panel layout. Its durable construction ensures long-term stability, even in demanding environments. With its strong output, zone flexibility, and dependable design, the TOA Amplifier VM-2240 serves as an excellent choice for professional PA applications that require scalability and consistent audio performance.
Specifications:
| Model | TOA VM-2240 System Management Amplifier |
| Rated Output | 240 W |
| Power Source | AC: 230 V, 50/60 Hz; DC: 24 V/15 A |
| Speaker Zones | 5 switchable high-impedance zones |
| Inputs | 4 audio inputs (including BGM & mic/line) |
| Frequency Response | 50 Hz – 16 kHz |
| Tone Control | Bass ±10 dB, Treble ±10 dB |
| Emergency Broadcast | Supported (EN60849 standard) |
| Expandable Units | Up to 9 units combined |
| Dimensions | Rack-mountable 3U |
| Optional Extensions | Remote microphone, surveillance board |
